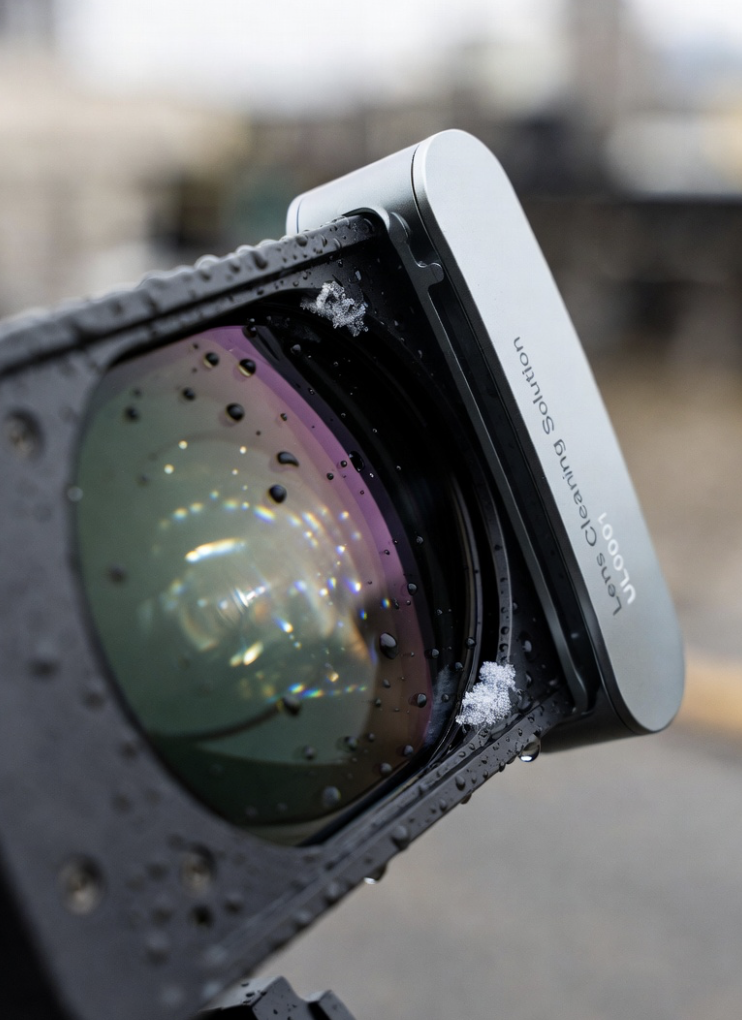

Lens Cleaning Solution (UL0001): Piezoelectric Vibration for Continuously Clear Vision

Maintaining optical lens cleanliness in harsh or dynamic environments is critical for the reliable performance of imaging systems. The Lens Cleaning Solution UL0001 provides an advanced, reliable, and compact autonomous cleaning system designed to ensure consistently clear vision.

Based on the inverse piezoelectric effect of piezoelectric ceramics, UL0001 directly addresses challenges such as water droplet accumulation, frost formation, and light contaminant adhesion on lens surfaces.

Core Technology and Operating Principle

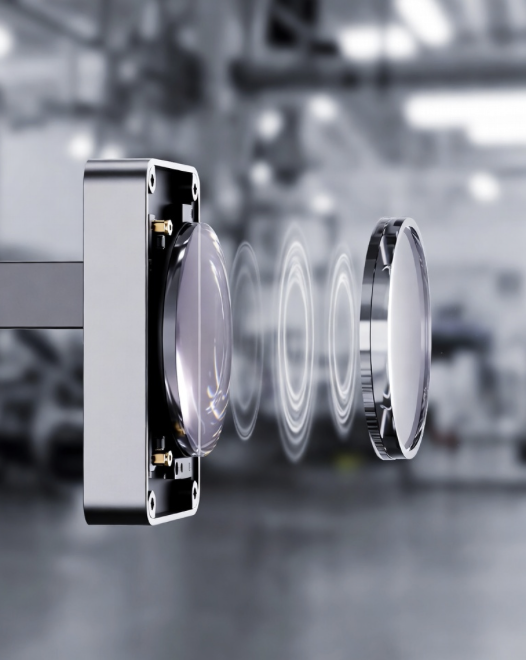

At the heart of the solution lies a precisely controlled physical mechanism. When a defined electrical drive signal is applied, the integrated piezoelectric ceramic element generates high-frequency mechanical deformation. This controlled vibration is transmitted to the lens itself or to a bonded substrate.

By operating under different vibration drive modes, the module generates tailored mechanical energy to effectively disrupt contaminant adhesion:

Water Removal Mode

High-frequency, low-amplitude vibrations generate standing or surface waves that shear water droplets, causing them to coalesce and roll off the lens surface.

De-icing / Defrost Mode

Specific vibration patterns disrupt the crystalline structure of frost or thin ice layers, enabling rapid detachment and melting.

This approach provides a non-contact, chemical-free, purely physical cleaning mechanism, ensuring efficient performance without additional consumables or mechanical wear.

Key Application Areas

The UL0001 solution is engineered for integration into systems where visual reliability is mission-critical:

Automotive Cameras

Ensures reliable performance of ADAS (Advanced Driver Assistance Systems), surround-view systems, and dash cameras under rain, snow, or freezing conditions—directly contributing to driving safety.

Industrial Vision Systems

Protects cameras used in manufacturing, robotics, and quality control from dust, oil mist, and splashes, minimizing downtime and maintenance requirements.

Security and Surveillance Cameras

Maintains continuous monitoring capability in all-weather conditions, preventing vision obstruction caused by rain, frost, or spider webs.

Additional Applications

Suitable for agricultural drones, outdoor sensors, and any sealed optical device requiring autonomous self-maintenance.

Advantages Over Traditional Cleaning Methods

Compared with conventional wiper or air-blowing solutions, this ultrasonic-based technology offers:

Compact and Easy Integration

Ultra-thin design enables seamless product integration without increasing system complexity.

Low Power Consumption

Highly efficient operation suitable for always-on systems.

High Reliability and Long Service Life

Solid-state design with no moving parts in contact with the lens surface.

Efficient and Versatile Cleaning Capability

Effective against both liquid droplets and solid contaminants.

UL0001 represents a next-generation solution for intelligent optical systems, combining precision engineering with robust environmental adaptability to ensure uninterrupted visual performance.
